Videoscopes

Introduction

3ig's range of Borescopes / videoscope are a tool to place a camera where it's needed, quickly and simply. Probe diameters start at 1.3mm for the tightest places, including flex angle control. Larger 3.9mm or 6mm probes offer the full HD [720p] images, 4 way flex control and choice of side or forward facing cameras.

Specifications

All dedicated videscope systems support the following specifications

  • 5" TFT LCD Monitor
  • Digital Image Processor
  • Snapshot
  • Video Recording Including Sound
  • Joystick Controller for 360 degree All-Way Probe Documentation
  • Supports 20 Languages

Options

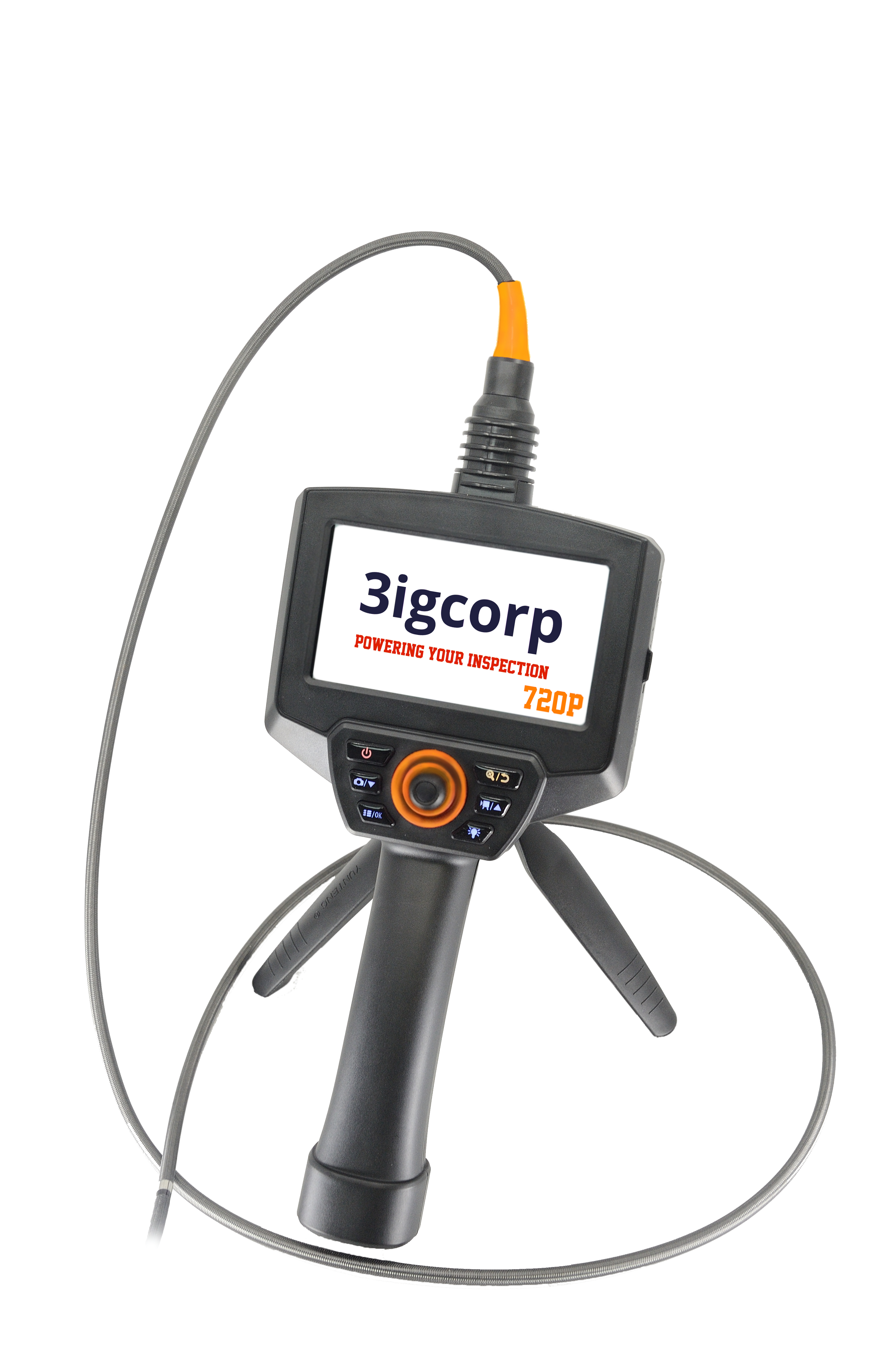

Ideal Borescope O

The Ideal Borescope Kit O has four models. A high quality system with a 1280 x 720 [720p] high resolution screen image, the probe diameter comes in 6mm and 3.9mm, with 4way articulation, 0 degrees direct view angle and from high density tungsten steel.

The models are split up between two 6mm diameter and two 3.9mm options. In those in those two 3.9mm and 6mm variations, there are 2m and 3m option in each, totaling four distinct models. All models are equipped with a fibre light source and interchangeable insert probe.

Probe Options

O Kit Insert Probe
 Model Name   Diameter (mm)   Articulation   View Angle   Length (m)   Light Source

 IPM604WD20FC

 IPM604WD30FC

 6   4way   0° Direct View

 2

 3

 Fibre

 IPM604W515LB

 IPM604W530LB

 6   4way   90° Side View

 1.5

 3

 LED

 IPM60C515LB

 IPM60C530LB

 6   N/A   90° Side View

 1.5

 3

 LED

 IPM394WD20FC

 IPM394WD20FC

 3.9   4way   0° Direct View

 2

 3

 Fibre

 IPM394W515LF

 IPM394W530LF

 3.9   4way   90° Side View

 1.5

 3

 LED

 IPM39C515LF

 IPM39C530LF

 3.9   N/A   90° Side View

 1.5

 3

 LED

*All O Kit Insert Probes have a resolution of 1280 x 720 [720P HD] and are made from high density tungsten steel.

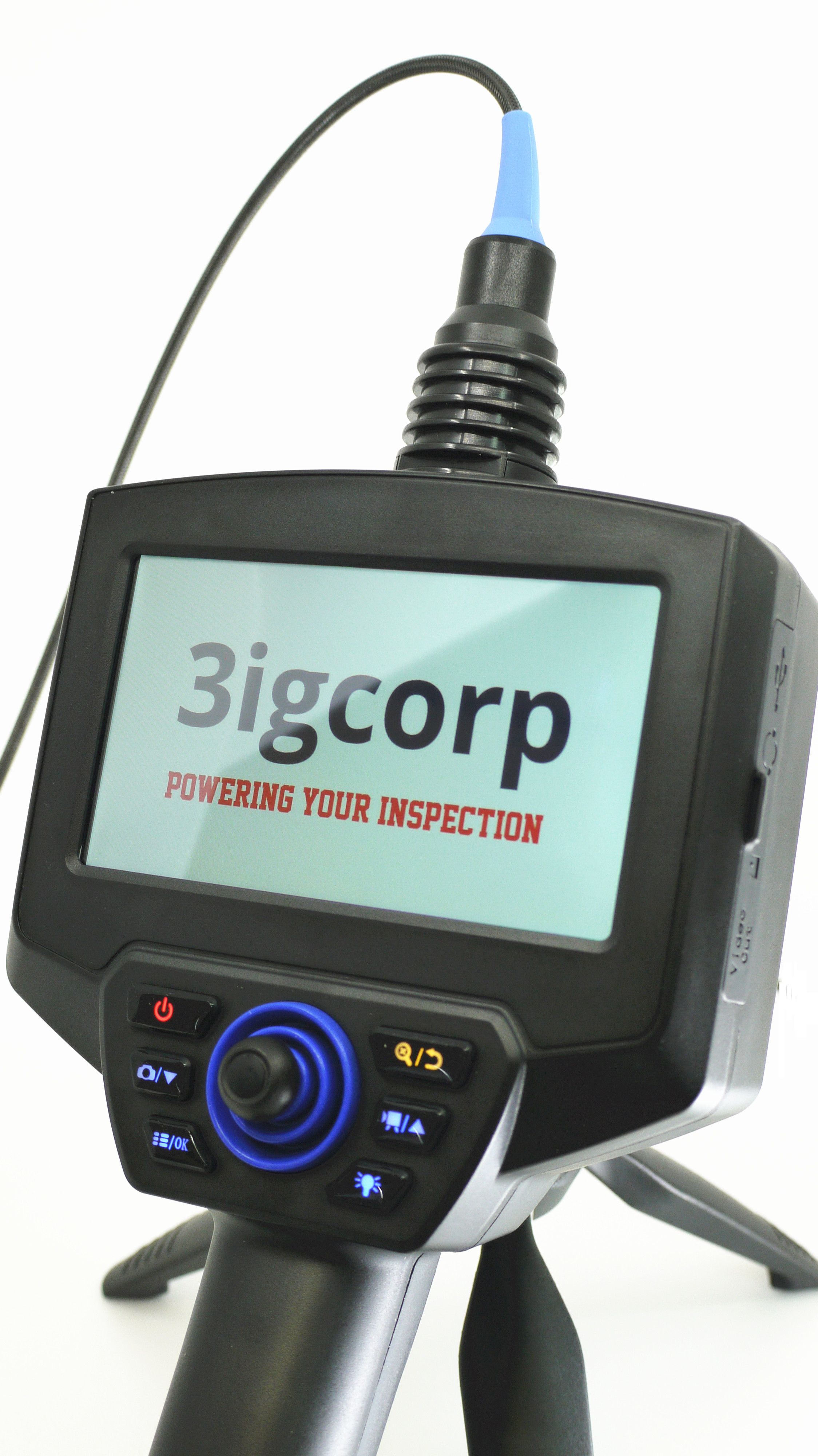

Ideal Borescope B

The B model are flexible, lower specification models, but do include an option with interchangeable camera tips. Suitable for occasional Borescope users. The Ideal Borescope Kit B has seven models. The system has a 640 x 480 resolution and the probe diameter comes in 3.9mm and 2.8mm variations. Depending on the model, you can pair a diameter of 3.9mm or 2.8 mm with a 4way articulation (2way option available only with 2.8mm diameter).

All models with 2.8mm diameters have 0 degree side angle views and a 90 degree direct angle view is only available with a 3.9mm diameter. The probe length themselves include 1m, 1.5m, 2m and 3m. All models are equipped with a fibre light source.

Probe Options

B Kit Insert Probe
 Model Name  Diameter (mm)   Articulation   View Angle   Length (m)   Light Source
 IP394WD15FC   3.9  4way  0° Direct View

 1.5

 Fibre

 IP394WX30FC

 3.9  4way  0° Direct View

 3

 Fibre

 IP394W515FB

 3.9  4way  90° Side View

 1.5

 Fibre

 IP39CD15FC

 IP39C515FB

 3.9  N/A

 0° Direct View

 90° Side View

 1.5

 Fibre

*All B Kit Insert Probes have a resolution of 640 x 480 and are made from high density tungsten steel.

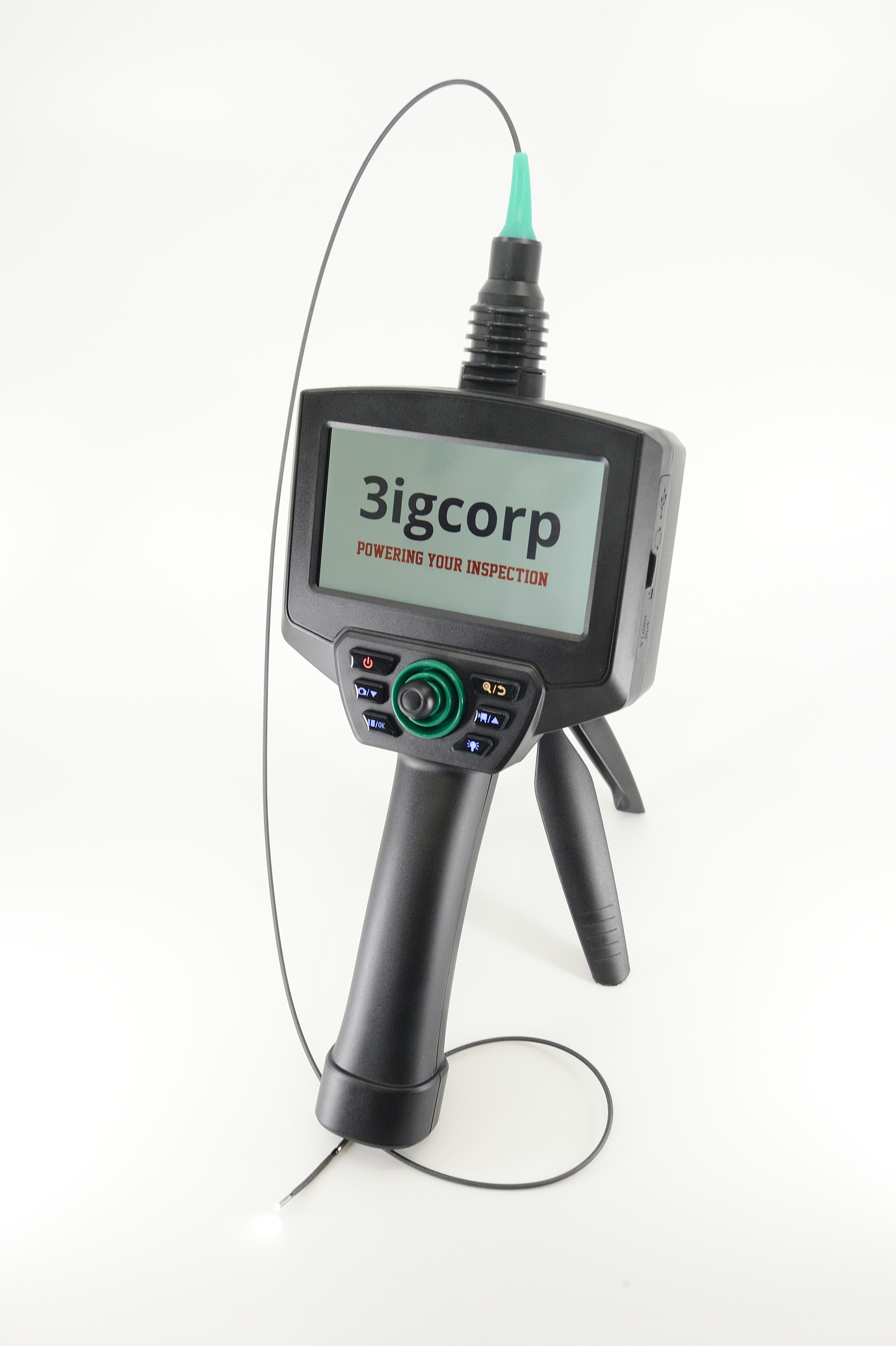

Ideal Borescope G

The G models are the most compact Borescopes in the range. It is best used when a larger Borescope diameter would not be appropriate. The Ideal Borescope Kit G has three models. The system has a 400 x 400 resolution and the probe diameter comes in 2.2mm, 1.6mm and 1.3mm variations. The G kit models are available with 2way articulation, a zero degrees direct view, a length of 0.8m and a fibre light source.

Probe Options

G Kit Insert Probe
 Model Name   Diameter (mm)   Articulation   View Angle   Length (m)   Light Source
 IP284WD10FC   2.8   2way   0° Direct View

 1

 Fibre

 IP222WD08FE

 2.2

 2way   0° Direct View

 0.8

 Fibre

 IP16D08FC

 1.6   N/A   0° Direct View

 0.8

 Fibre

 IP132WD080F

 1.3   2way

 0° Direct View

 0.8

 Fibre

 *All G Kit Insert Probes have a resolution of 400 x 400 and are made from high density tungsten steel.

Accessories

All kits come complete with:

  • AV Out Cable
  • USB Cable
  • Micro SD Card
  • USB Micro SD Card Reader
  • Power Adapter
  • 2 x Batteries
  • Charger
  • Tripod
  • User Manual

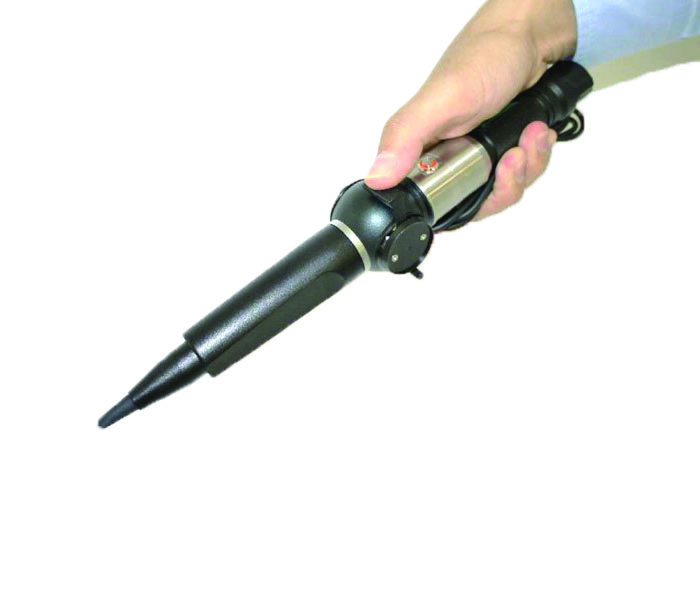

Ideal Borescope U Kit

Specifications

  • Microsoft Windows 10
  • 400*400
  • Insert Probe supported
  • 2.2mm, 1.0 meters
  • 1.6 mm, 1.0 meters
  • 2 ways articulation(2.2mm)
  • Snapshot and video recording
  • Tungsten coil layer
  • Adequate Lighting



 U222WD10FC

 U16CF10FC

 Probe Diameter

 2.2mm

 1.6mm

 Side View Solution

 N/A

 Light Source

 High-power LED with high transmission fibreoptic

 Articulation

 2 ways articulation

 NON Articulation

 Insert Probe Length Supported

 1m

 Depth of Field

 3-50mm

 Viewing Angle

 90°

 Bending Angle

 ≥90°

 Waterproof Level

 Insert Tube matches IP-67 Standard

 Working Time

 ≥2 hours

 Power

 Rechargeable 18650 Battery

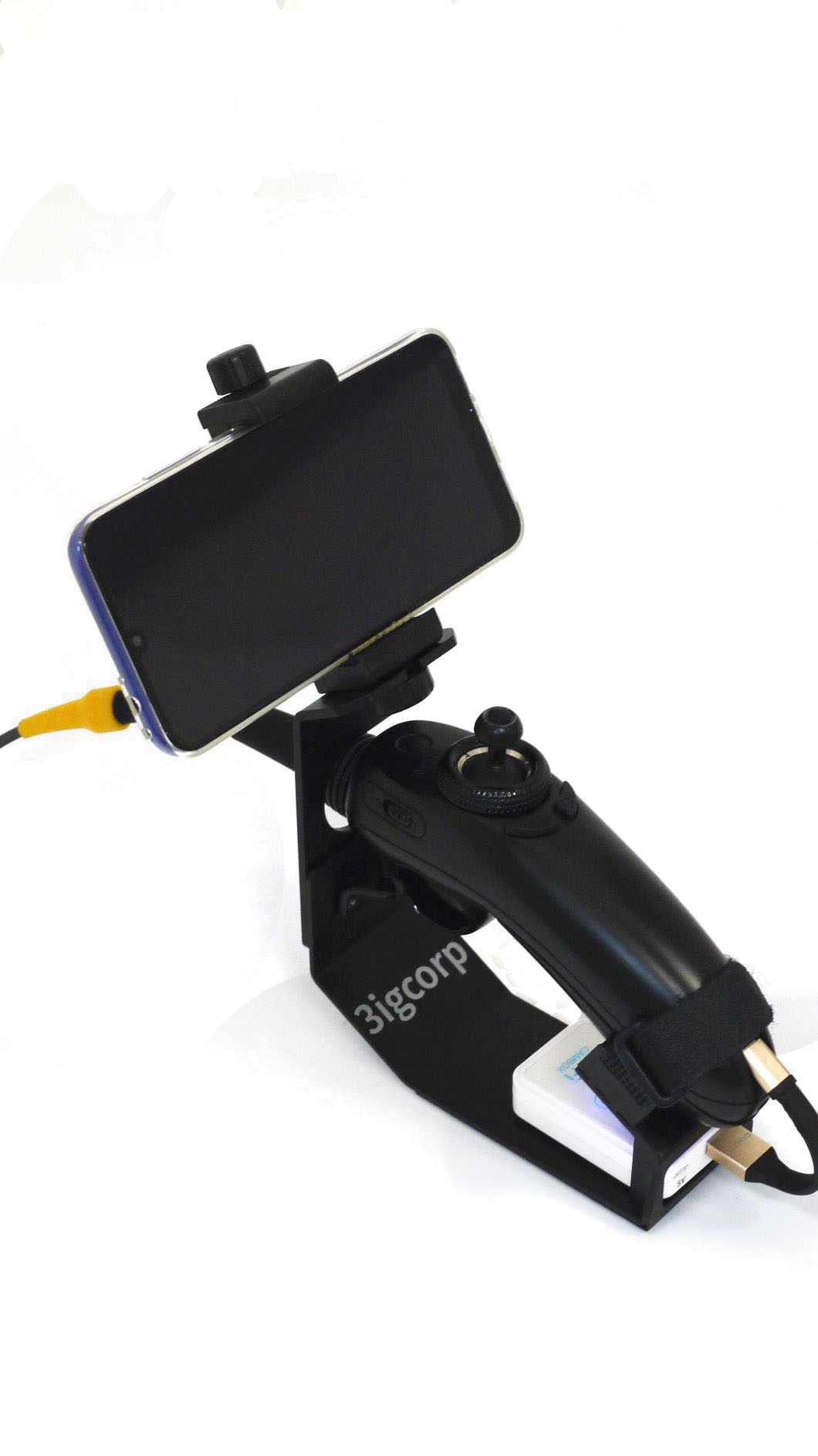

Ideal Borescope W Kit

Specifications

  • Microsoft Windows 10
  • Wireless Connection via APP
  • Android
  • iOS
  • 1280*720 (720P)
  • 1 Million pixels
  • Insert Probe supported
  • 6.0mm, 1.5 meters
  • 3.9mm, 1.5 meters
  • 3.0mm, 1.0 meter
  • 360° all-ways articulation
  • Tungsten coil layer
  • Adequate Lighting
  • Interchangeable Camera Tips are option
  • Snapshot and video recording



 UM604WD15FC

 UM394WD15FC

 UM304WD10FC

 Probe Diameter

 6.0mm

 3.9mm

 3.0mm

 Side View Solution

 Doable

 Doable

 N/A

 Light Source

 High-power LED with high transmission fibreoptic

 Articulation

 360° all-way articulation

 Insert Probe Length Supported

 1.5 and 3m

 1m

 Depth of Field

 8-150mm

 Viewing Angle

 90°

 Bending Angle

 ≥110°

 Waterproof Level

 Insert Tube matches IP-67 Standard

 Working Time

 ≥2 hours

 Power

 Rechargeable 18650 Battery


Application field (U and W Kit)

  • Aviation
  • Automotive inspection
  • Heat Exchanger
  • Heavy Industry
  • Welding
  • Foundry

Additional Information

Videoscopes Brochure
