Linear Phased Array Immersion Series





Applications

  • Power: Pressure Vessels, Pipelines
  • Petroleum: Pipelines, Tanks
  • Aviation / Aerospace: Composites, Delamination & Abhesion, Welding, Landing Gears Inspection
  • Transportation: Composites Delamination & Abhesion, Planks
  • Conventional: Large Area Scanning; Planks, Sticks, Pipelines Thickness Measurement


Features

  • Electronic Controls Beam Angle, Focusing, and Scanning Step Size
  • Less Settings and Scanning Time
  • Electronic Focusing – Increased Sensitivities & Signal-to-noise Ratios
  • Reduction or Exemption of Mechanical or Manual Controls
  • Wedge is replaceable when Immersion Method Applied


Specifications and Dimensions


Model Frequency (MHz)Elements Pitch (mm)Active Aperture (mm) Elevation (mm)
5L128-0.8*10 51280.8102.410
5L128-1.0*10 5128112810

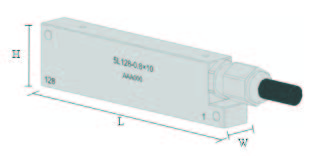

Casing DimensionsCasing Type
LWH
1201630
B60
1341635
D27
