Linear Phased Array Small Series
Applications
- Power: conventional welding inspection, pressure vessels, oil refineries, etc
- Aviation / Aerospace: Welding, Landing Gears Inspection
- Automotive: Engine Parts, Frames, Axles, Brake Discs.
- Conventional: Welding, Forgings, Castings, Pipes, Bridges & Construction Steels
Features
- Tiny outlines
- Cable top or side leads
- Electronic Controls Beam Angle, Focusing, and Scanning Step Size
- Fixed Angle & Focused Probes, Without the Need of Multiple Detections
- Can Detect Conventional Undetectable Areas
- Replaceable Two Types of Wedges - Flatted & Curved Surfaces
Specifications and Dimensions
| Model | Frequency (Mhz) | Elements | Pitch (mm) | Active Aperture (mm) | Elevation (mm) | Casing Dimensions L x W x H | Casing Type |

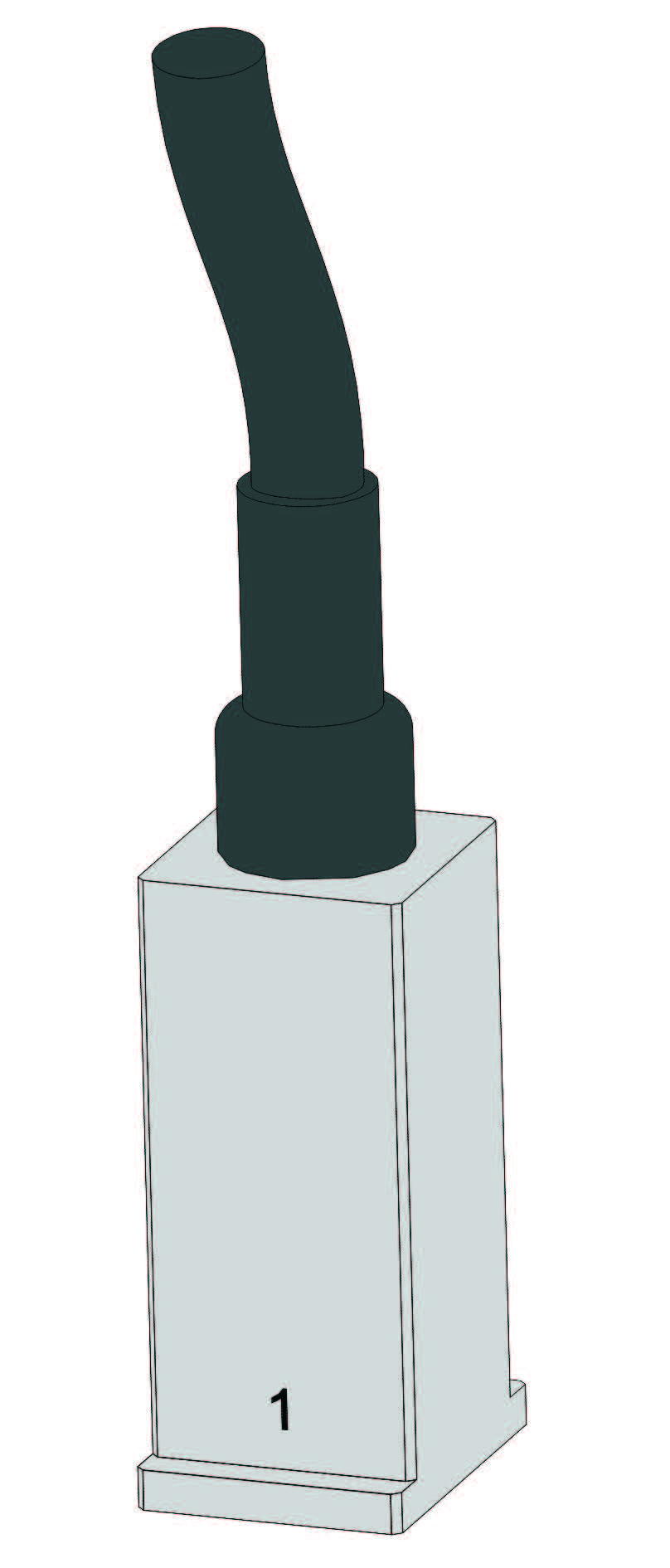

| 5L10-0.6*6 | 5 | 10 | 0.6 | 6 | 6 | 13 x 10 x 23 |  B54 |
| 10L10-0.6*5 | 10 | 10 | 0.6 | 6 | 5 | ||
| 5L8-0.5*5 | 5 | 8 | 0.5 | 4 | 5 | 12 x 20.5 x 18 |  B20 |
| 7.5L8-0.5*5 | 7.5 | 8 | 0.5 | 4 | 5 | ||
| 10L16-0.31*5 | 10 | 16 | 0.31 | 4.96 | 5 | ||
| 5L16-0.31*5 | 5 | 16 | 0.31 | 4.96 | 5 | 11.5 x 11.5 x 23 |  B55 |
| 10L16-0.31*5 | 10 | 16 | 0.31 | 4.96 | 5 |
